Benefits

The K-positioners can manipulate products ranging from several to even 1000 kg. Each of the positioners can be immediately delivered with standard configuration or can be prepared in a special design that accommodates the individual needs of the application. K-positioners are based on the concept of modular construction. This makes it easy to modify the positioner and adapt it to the changing production needs.

  • Modularity
  • Easy reconfiguration
  • Powerful and reliable components
  • Native integration with Kawasaki robots
  • Short delivery time

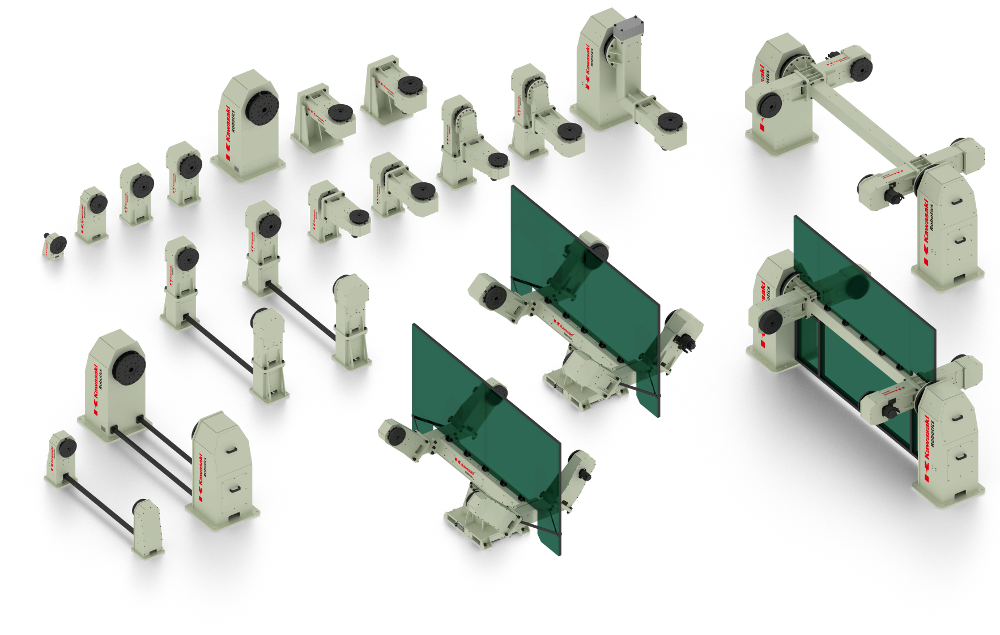

  • Complete range of positioners

Self design positioner

vs.

K-Positioners

Time-consuming

Short delivery time - READY POSITIONERS FROM THE STOCK

High risk

SHORT INTEGRATION TIME

Expensive (prototyping, mechanical modifications)

Low risk –all main components are same with Kawasaki robot components,

Economical risk (big part of work has to be done before getting final order)

No expenses before getting final order from the customer

EASY RECONFIGURATION OF THE SYSTEM


Positioners
Single axis positioners
PST250

  • General purpose single axis positioner - basic modul
  • Horizontal rotating axis
  • Kawasaki external axis (E0x controller)
  • Payload 60, 125, 250, 500, 1000, 2000kg
  • Eco version for payload 250, 500 and 1000kg
PST060
PST125
PST250
PST500
PST1000

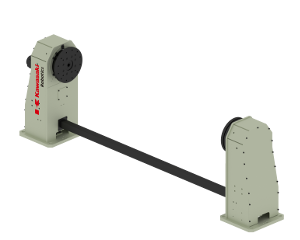

  • General purpose single axis positioner
  • Horizontal rotating axis
  • Supporting unit - extended length of workpiece
  • Pedestal unit- extended workpiece dimension
  • Kawasaki external axis (E0x controller)
  • Payload 125, 250, 500kg
PST500-H1H-x

Double axis positioners
PST250-F2

  • General purpose double axis positioner
  • Horizontal rotating axis + Vertical rotating axis
  • Kawasaki external axis (E0x controller)
  • Payload 125-250 kg
PST125-F2
PST250-F2

  • General purpose double axis positioner
  • Horizontal rotating axis + Vertical rotating axis
  • Pedestal unit - extended workpiece dimension
  • Kawasaki external axis (E0x controller)
  • Payload 125, 250, 500 kg
PST150-L2
PST300-L2

Multipositioners
PST500-M3H2V1

  • General purpose multipositioner
  • Vertical rotating axes + 2 Horizontal rotating axis
  • 2 stations
  • 2 Kawasaki external axis (E0x controller)
  • Payload 125, 250, 500, 1000 kg per side
PST125-M3H2V1-x
PST500-M3H2V1-x

  • General purpose multipositioner
  • 3 Horizontal rotating axis
  • 2 stations
  • 2 Kawasaki external axis (E0x controller)
  • Payload 125, 250, 500, 1000 kg per side
PST250-M3H3
PST500-M3H3-x
PST500-M3H3

Welding stations

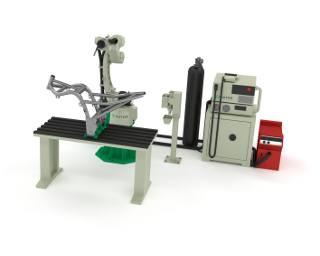

Welding station without positioner

Welding station
without positioner

Components

  • Kawasaki industrial robot series BA or RA
  • Fronius welding power source
  • Tooling (a wire feeder, welding torch,
    anti-collision connector)
  • Welding table (no manipulation)

Workpiece

  • Simple geometry
  • Forced welding positions
Welding station with double axis positioner

Welding station
with double axis positioner

Components

  • Kawasaki industrial robot series BA or RA
  • Fronius welding power source
  • Tooling (a wire feeder, welding torch,
    anti-collision connector)
  • Double axis positioner with 250kg payload

Workpiece

  • Complex geometry
  • Always optimal welding position
Welding cell with multipositioner

Welding cell
with multipositioner

Components

  • Kawasaki industrial robot series BA or RA
  • Fronius welding power source
  • Tooling (a wire feeder, welding torch,
    anti-collision connector)
  • Positioner H (2 stations) with 300kg payload per side
  • Common frame for guaranteed positioning
  • Safety system to protect robot's work zone
  • Welding Fume Extraction and cleaning station

Workpiece

  • Complex geometry
  • Long workpieces
  • Always optimal welding position
  • Double productivity



Positioners in action

Wiśniowski

„We are automating those processes where robotization delivers tangible benefits. Through the use of state of the art technologies, we’ve improved the quality of our production processes, and, perhaps even more significantly, the safety of our operators. Currently we are delivering excellent weld quality and high productivity” - Maciej Socha, Fencing Systems and Corrosion Protection Director

Targets

  • Increase productivity
  • Increase production process quality
  • Improve operator safety

Benefits

  • Reduced lead times
  • three-fold efficiency increase in the robotized gate welding process
  • Excellent weld quality achieved through robotized welding

Wasiak Gruppe / POLMO SA

“Robotization ensures high quality of products and optimizes product cost. It makes winning contracts easier for us” - Marek Wasiak
