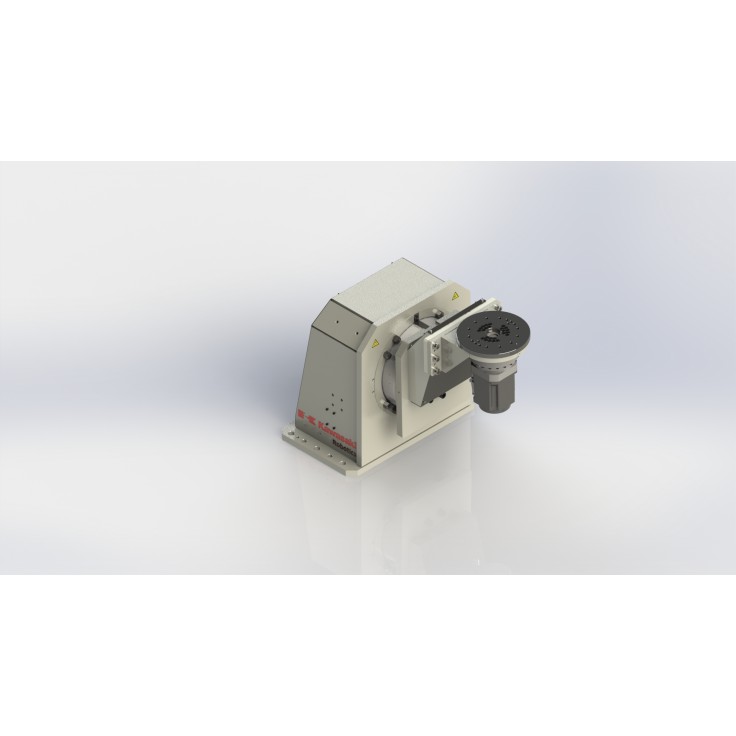

Double axis welding positioner with horizontal rotating axis and vertical rotating axis and 500 kg payload

icon-sku SKU: PST500E-F2H

Ask about

Available in: 8 weeks icon-time
Delivery:   International transport - ask for quote
Pickup at ASTOR Robotics Center - 0 €
More about shipment and delivery »
  • General purpose double axis positioner
  • Horizontal rotating axis + Vertical rotating axis
  • Kawasaki external axis (E0x controller)
  • Payload 500 kg
Max. payload 500 kg
Degree of freedom 2 axis
Nominal torque JT1 1960 Nm
Max. torque JT1 4900 Nm
Nominal torque JT2 600 Nm
Max torque JT2 1500 Nm
Turning range JT1 +/-180°
Turning range JT2 +/-360°
Max. rotating speed JT1 120°/s
Max. rotating speed Jt2 150°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT2 100 mm
Max. offset COG from flange surface 50 mm
Max. mass moment of inertia JT1 1150 kgm2
Max. mass moment of Inertia JT2 107 kgm2
Mass 460.0000
Default height of rotating axis JT1 355 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
