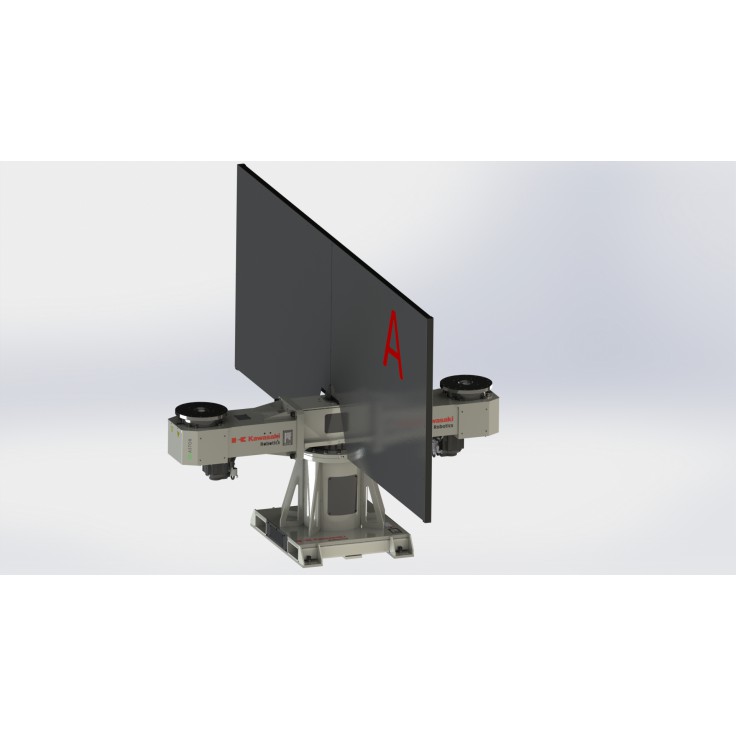

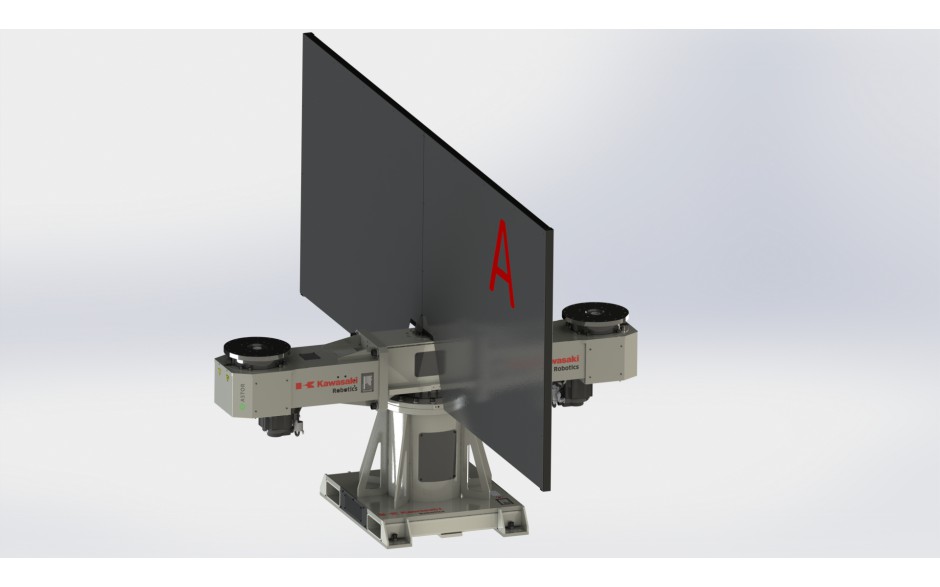

Multi axis welding positioner with 3 vertical rotating axis, 2 stations and 750 kg payload

Multi axis welding positioner with 3 vertical rotating axis, 2 stations and 750 kg payload

Multi axis welding positioner with 3 vertical rotating axis, 2 stations and 750 kg payload

icon-sku SKU: PST750-M3V3


Add to Compare

Available in: 12 weeks icon-time
Delivery:   International transport - ask for quote
Pickup at ASTOR Robotics Center - 0 €
More about shipment and delivery »
  • General purpose multipositioner
  • 3 Vertical rotating axis
  • 2 stations
  • Kawasaki external axis (E0x controller)
  • Payload 375 kg per side
Distance between flanges -
Max. payload 750 kg
Degree of freedom 3 axis
Max.diameter of detail 780 mm
Load ratio between the parties 100:60
Nominal torque JT2/3 167 Nm
Max torque JT2/3 No
Turning range JT1 +/-182°
Turning range JT2/3 +/-360°*
Max. rotating speed JT1 No
Max. rotating speed JT2/3 No
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT2/3 100 mm
Turning time JT1 (180°) No
Max. mass moment of Inertia JT1 - without the inertia of the structure No
Max. mass moment of Inertia JT2/3 No
Mass 643.0000
Max. loading height 865 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
