Multi axis welding positioner with vertical rotating axes and 2 horizontal rotating axis and 500 kg payload - Compact version

Multi axis welding positioner with vertical rotating axes and 2 horizontal rotating axis and 500 kg payload - Compact version

Multi axis welding positioner with vertical rotating axes and 2 horizontal rotating axis and 500 kg payload - Compact version

icon-sku SKU: PST500E-M3-H2V1

Ask about

* Required Fields


Available in: 12 weeks icon-time
Delivery:   International transport - ask for quote
Pickup at ASTOR Robotics Center - 0 €
More about shipment and delivery »

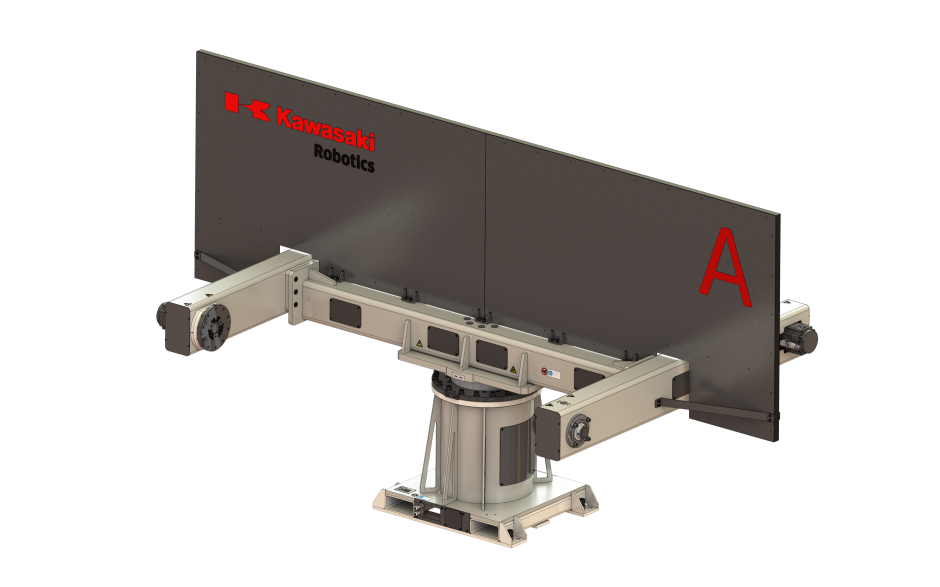

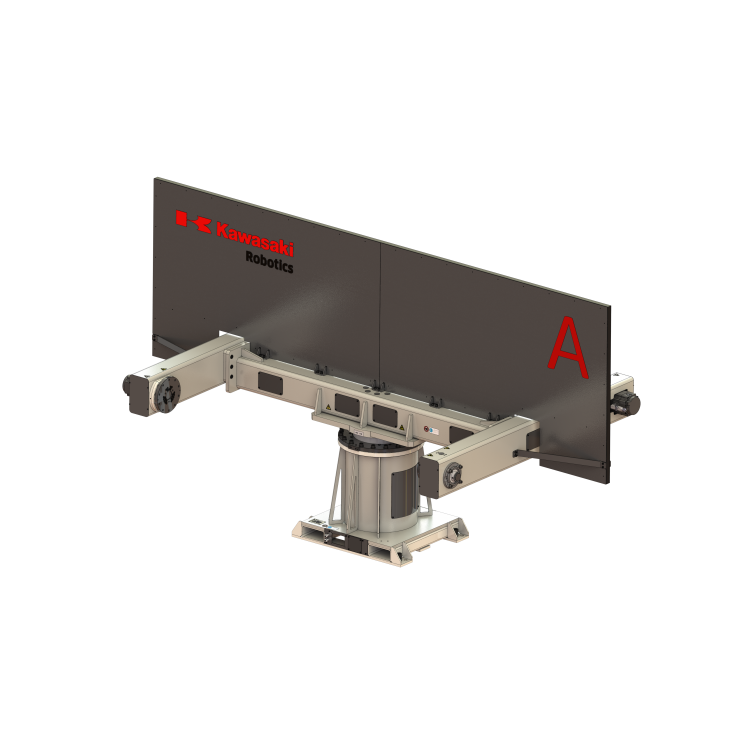

  • General purpose multipositioner Compact version
  • Vertical rotating axes + 2 Horizontal rotating axis
  • 2 stations
  • 2 Kawasaki external axis (E0x controller)
  • Payload 500 kg per side / Distance between flanches 1600-2000
Max. payload 500 kg
Degree of freedom 3 axis
Max.diameter of detail 1300 mm
Load ratio between the parties 100:60
Nominal torque JT2/3 167 Nm
Max torque JT2/3 No
Turning range JT1 +/-182°
Turning range JT2/3 +/-360°*
Max. rotating speed JT1 60°/s
Max. rotating speed JT2/3 150°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT2/3 100 mm
Turning time JT1 (180°) 3.7 s
Max. mass moment of Inertia JT1 - without the inertia of the structure 4300 kgm2
Max. mass moment of Inertia JT2/3 192 kgm2
Mass 1350.0000
Max. loading height 1035 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
