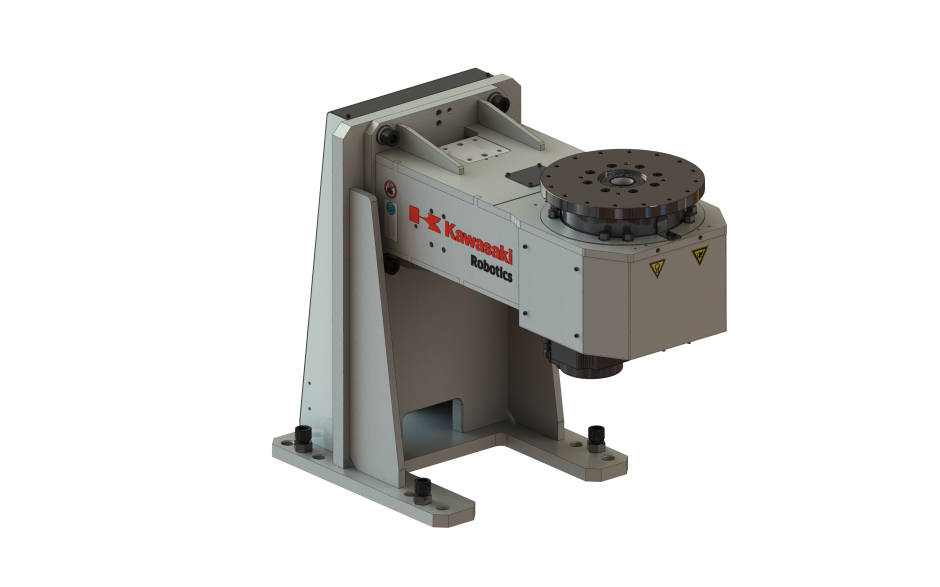

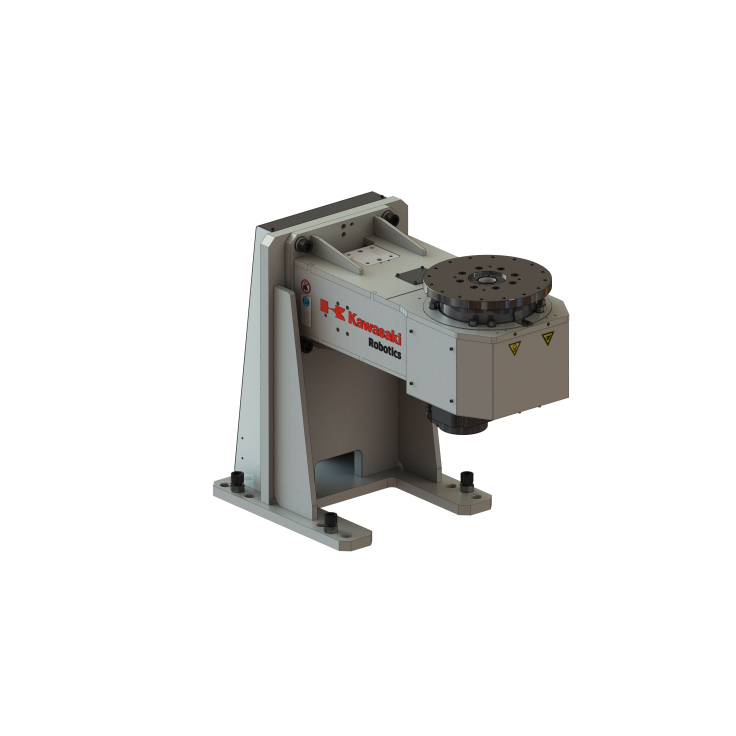

Single axis welding positioner with vertical rotating axis and 375 kg payload

Single axis welding positioner with vertical rotating axis and 375 kg payload

Single axis welding positioner with vertical rotating axis and 375 kg payload

icon-sku SKU: PST375-I1

Ask about

Available in: 8 weeks icon-time
Delivery:   International transport - ask for quote
Pickup at ASTOR Robotics Center - 0 €
More about shipment and delivery »
  • General purpose single axis positioner
  • Vertical rotating axis
  • Kawasaki external axis (E0x controller)
  • Payload 375 kg
Max. payload 375 kg
Degree of freedom 1 axis
Nominal torque JT1 490 Nm
Max. torque JT1 1200 Nm
Max. tilting torque 1750 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 150°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 No
Max. mass moment of inertia JT1 192 kgm2
Mass 248.0000
Default height of rotating axis JT1 702 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
