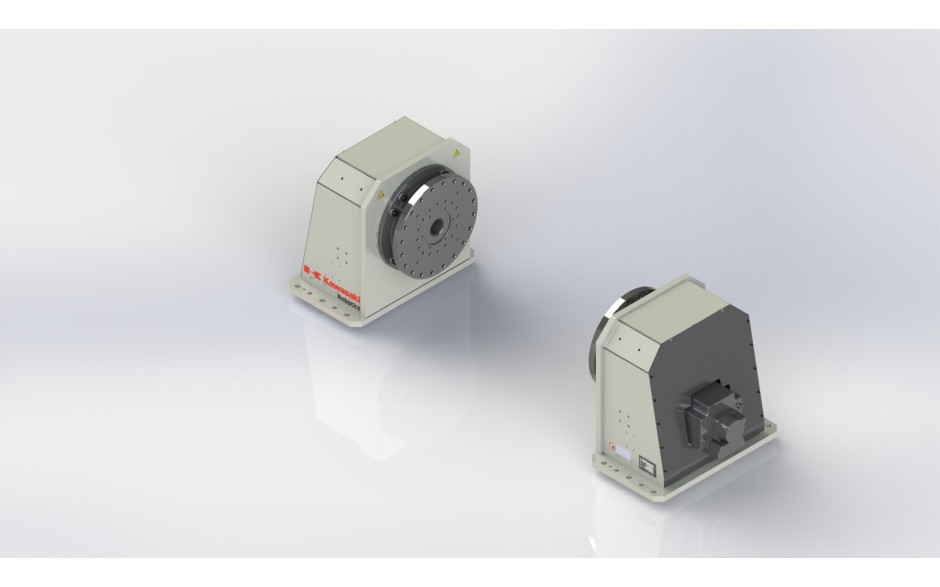

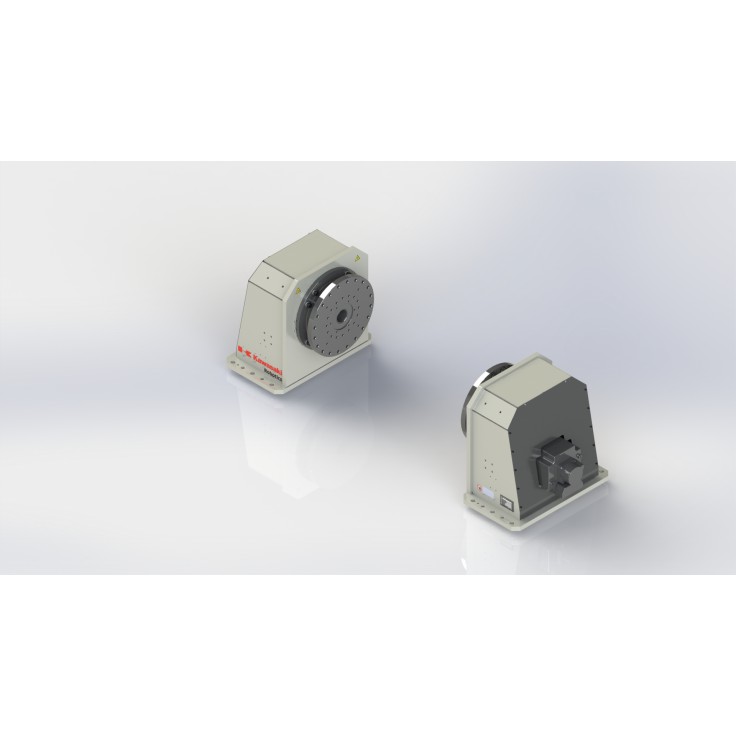

Single axis welding positioner with horizontal rotating axis and 1500 kg payload

Single axis welding positioner with horizontal rotating axis and 1500 kg payload

Single axis welding positioner with horizontal rotating axis and 1500 kg payload

icon-sku SKU: PST1500S-H1


Add to Compare

Available in: 8 weeks icon-time
Delivery:   International transport - ask for quote
Pickup at ASTOR Robotics Center - 0 €
More about shipment and delivery »
  • General purpose single axis positioner
  • Horizontal rotating axis
  • Supporting unit - extended length of workpiece
  • Pedestal unit- extended workpiece dimension
  • Kawasaki external axis (E0x controller)
  • Nominal payload 1500 kg
  • Maximum payload 2000 kg
Max. payload 2000 kg
Degree of freedom 1 axis
Nominal torque JT1 1960 Nm
Max. torque JT1 4900 Nm
Max. tilting torque 6850 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 120°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 130 mm
Max. mass moment of inertia JT1 1200 kgm2
Mass 580.0000
Default height of rotating axis JT1 355 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
