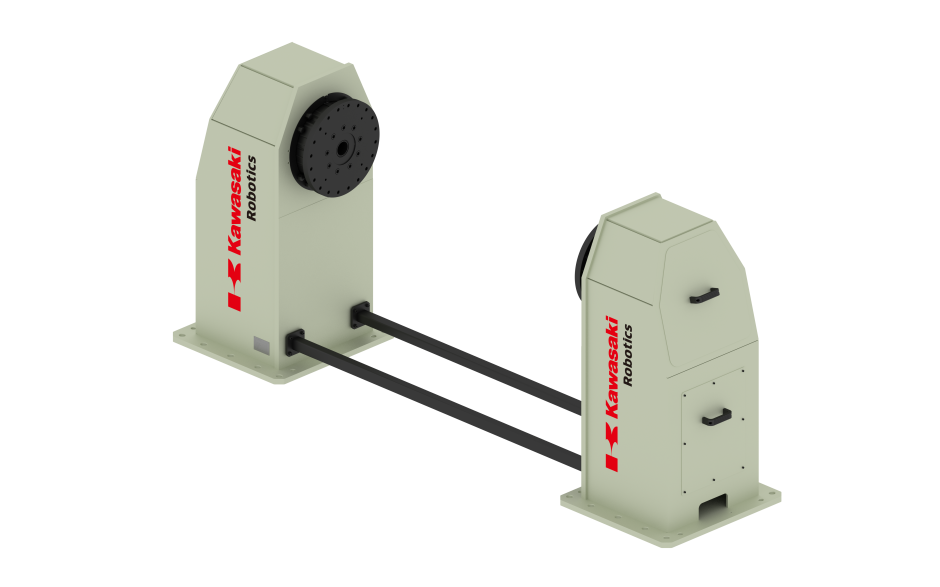

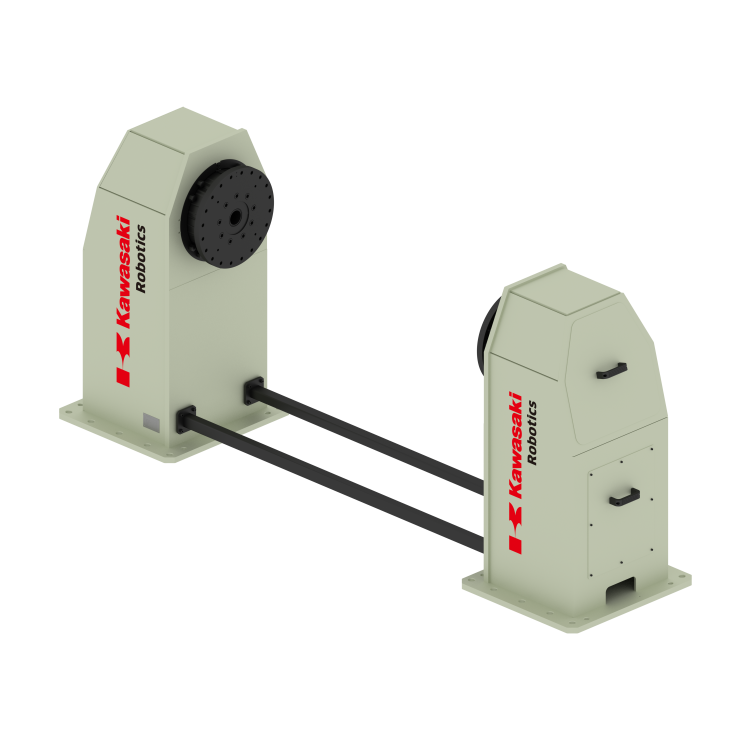

Single axis welding positioner with horizontal rotating axis and 1500 kg payload

Single axis welding positioner with horizontal rotating axis and 1500 kg payload

Single axis welding positioner with horizontal rotating axis and 1500 kg payload

icon-sku SKU: PST1500-H1


* Required Fields

Add to Compare

Available in: 8 weeks icon-time
Delivery:   International transport - ask for quote
Pickup at ASTOR Robotics Center - 0 €
More about shipment and delivery »
  • General purpose single axis positioner
  • Horizontal rotating axis
  • Supporting unit - extended length of workpiece
  • Kawasaki external axis (E0x controller)
  • Payload 1500 kg
  • Option: central beam**
Max. payload 1500 kg
Degree of freedom 1 axis
Nominal torque JT1 1960 Nm
Max. torque JT1 4900 Nm
Max. tilting torque 6850 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 120°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 130 mm
Max. mass moment of inertia JT1 1200 kgm2
Mass 850.0000
Default height of rotating axis JT1 975 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
