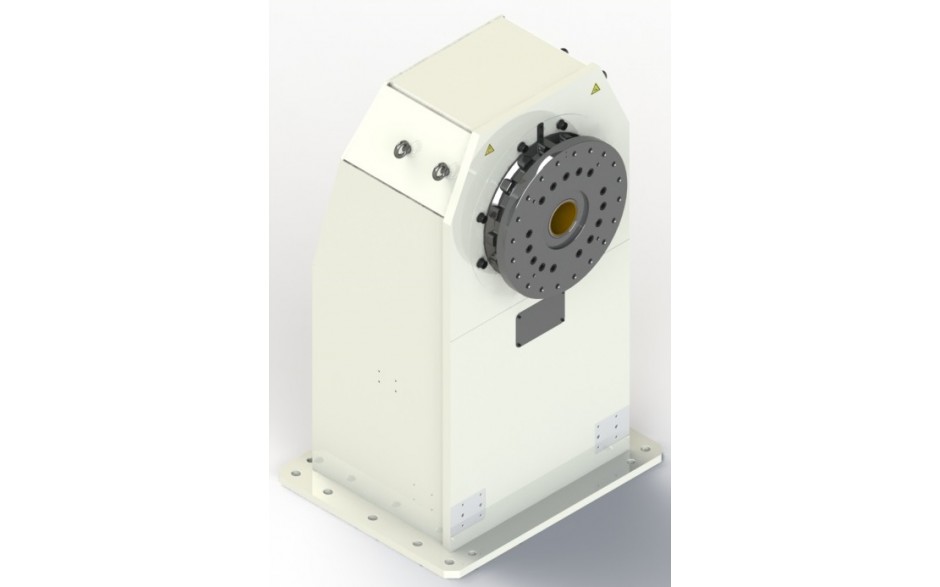

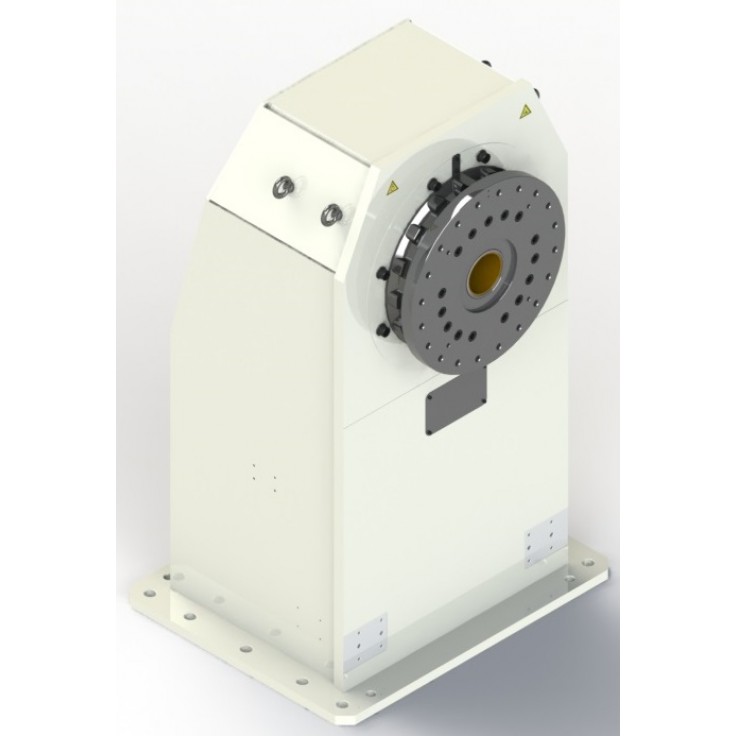

Single axis welding positioner with horizontal rotating axis and 2000 kg payload

Single axis welding positioner with horizontal rotating axis and 2000 kg payload

Single axis welding positioner with horizontal rotating axis and 2000 kg payload

icon-sku SKU: PST2000

Ask about

Available in: 8 weeks icon-time
Delivery:   International transport - ask for quote
Pickup at ASTOR Robotics Center - 0 €
More about shipment and delivery »
  • General purpose single axis positioner - basic modul normal version
  • Horizontal rotating axis
  • Kawasaki external axis (E0x controller)
  • Payload 2000 kg
Max. payload 2000 kg
Degree of freedom 1 axis
Nominal torque JT1 3136 Nm
Max. torque JT1 7840 Nm
Max. tilting torque 20000 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 70°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 97 mm
Max. mass moment of inertia JT1 3200 kgm2
Mass 700.0000
Default height of rotating axis JT1 1025 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
