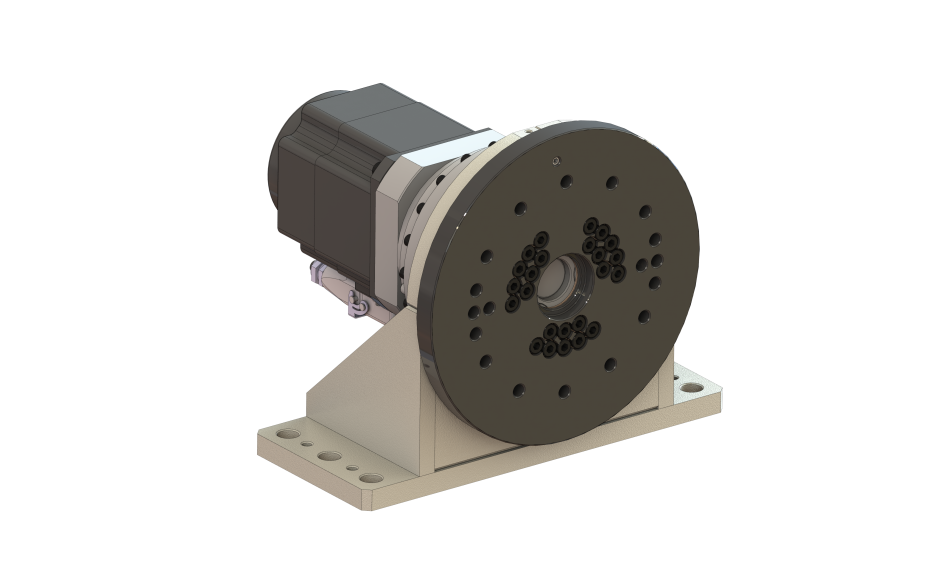

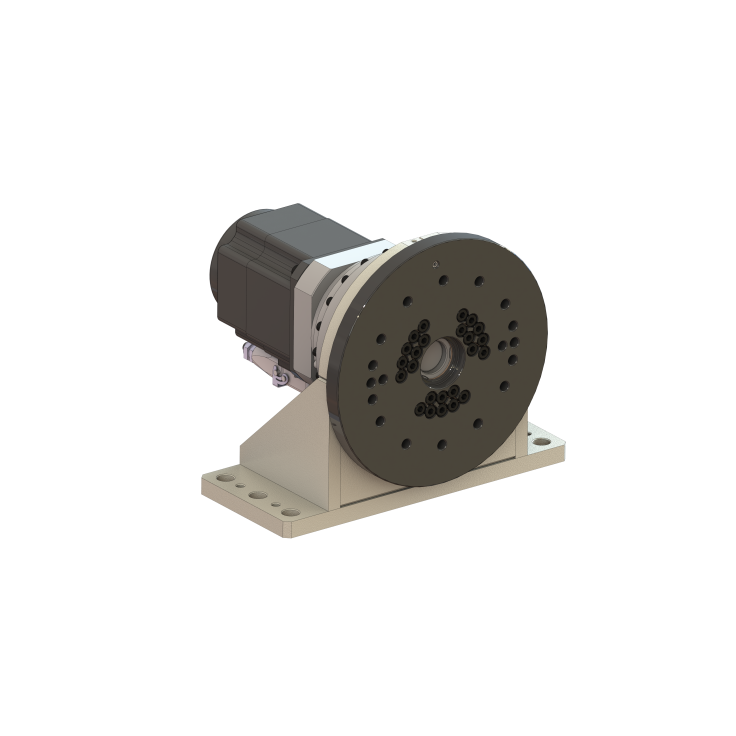

Single axis welding positioner with horizontal rotating axis and 500 kg payload - ECO version

Single axis welding positioner with horizontal rotating axis and 500 kg payload - ECO version

Single axis welding positioner with horizontal rotating axis and 500 kg payload - ECO version

icon-sku SKU: PST500E


Add to Compare

Available in: 8 weeks icon-time
Delivery:   International transport - ask for quote
Pickup at ASTOR Robotics Center - 0 €
More about shipment and delivery »
  • General purpose single axis positioner - basic modul ECO version
  • Horizontal rotating axis
  • Kawasaki external axis (E0x controller)
  • Payload 500 kg
Max. payload 500 kg
Degree of freedom 1 axis
Nominal torque JT1 600 Nm
Max. torque JT1 1500 Nm
Max. tilting torque 2000 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 150°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 122 mm
Max. mass moment of inertia JT1 107 kgm2
Mass 55.0000
Default height of rotating axis JT1 158 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
