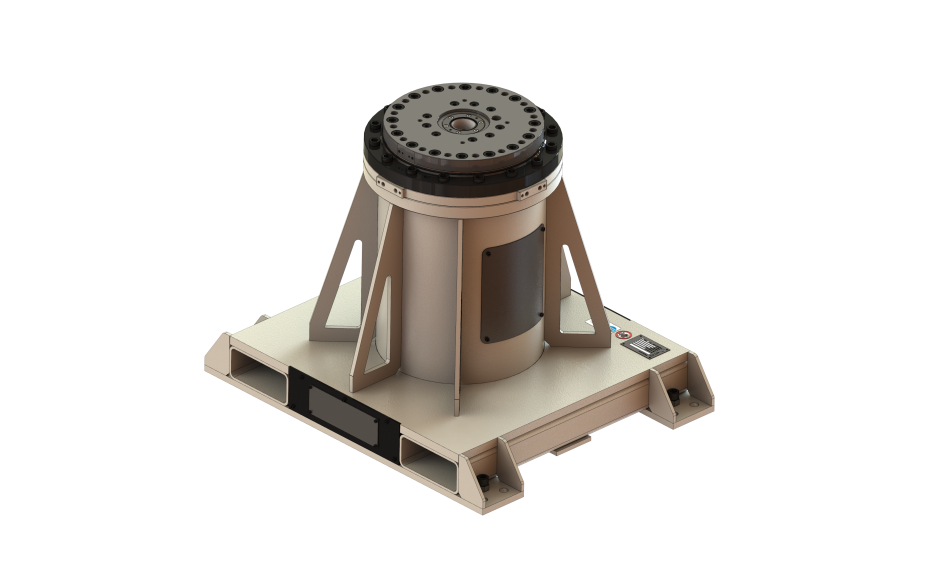

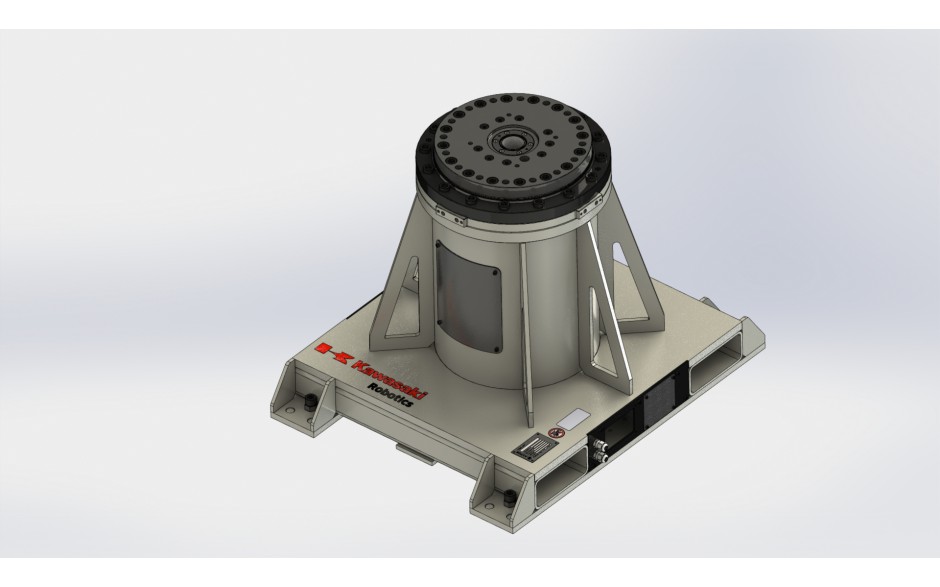

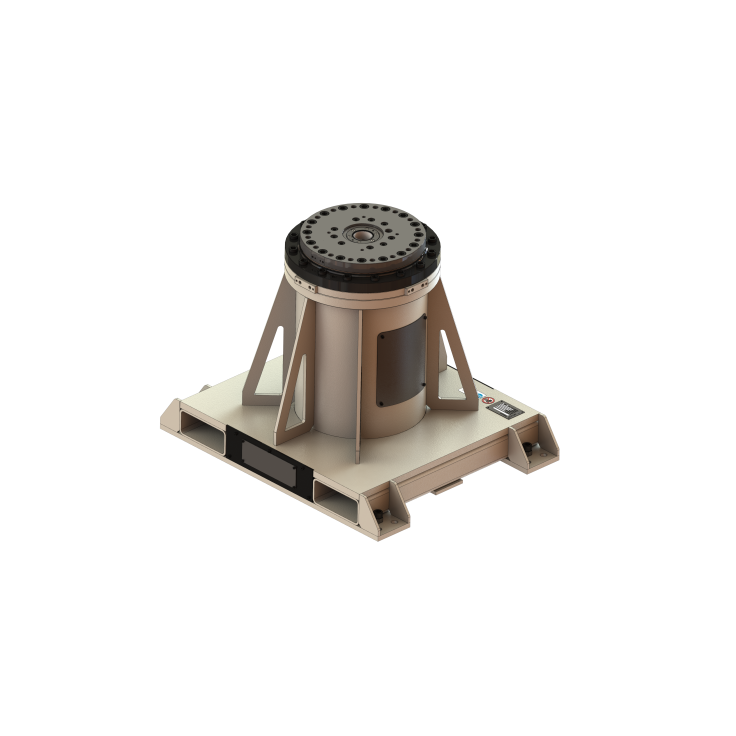

Single axis welding positioner with vertical rotating axis and 1500 kg payload

Single axis welding positioner with vertical rotating axis and 1500 kg payload

Single axis welding positioner with vertical rotating axis and 1500 kg payload

icon-sku SKU: PST1500-I1

Ask about

Available in: 8 weeks icon-time
Delivery:   International transport - ask for quote
Pickup at ASTOR Robotics Center - 0 €
More about shipment and delivery »
  • General purpose single axis positioner
  • Vertical rotating axis
  • Kawasaki external axis (E0x controller)
  • Adjustable height (base unit replacement
  • Payload 1500 kg
Max. payload 1500 kg
Degree of freedom 1 axis
Nominal torque JT1 950 Nm
Max. torque JT1 2450 Nm
Max. tilting torque 4450 Nm
Turning range JT1 +/-360°
Max. rotating speed JT1 90°/s
Repeatability ±0.05 mm
Max. offset COG from rotating axis JT1 No
Max. mass moment of inertia JT1 990 kgm2
Mass 267.0000
Default height of rotating axis JT1 650 mm
Installation Floor
Color NCS S 0510-G50Y & RAL9011
Built-in utilities Welding ground transfer system
Nominal weld current - 100% duty cycle 500 A
Environment cond. 0÷40°C (Humidity) 35÷85%, no dew
